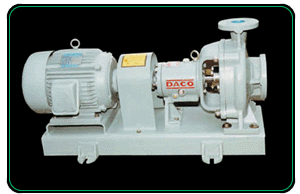

| Model
: DHIV Single
Suction Volute Pump |
|
|
 |
 |
 |
¢º
Application
For Clean Water. Use of chemical Process.
Enviromental Industries. Oter Various Industries.
High temperature of strong Acid. Water Treating
Industries.Waste Scrubber
¢º Design
And Operation Feature
1. Full Compliance With ISO 2858 Specification
2. Adjustable Side Plate And Impeller
3. Law NPSH Performance
4. Equid With Replaceable Shaft Protection Sleeve
5. Back-Pull Out Design For Low Maintenance And
Downtime
6. Special Materials Or Casting For Specific Liquid
Pumping |
|
 |
|
| ¢Ã
Rating ¢Ã |
| -
Capacity- |
MIN. 50L/MIN
MAX. 120,000L/MIN |
| -
Total Head- |
MIN. 3M ~
MAX. 120M |
-
Opereting
Temperature - |
-25¡É to 150¡É |
-
Revolution -
|
1000rpm to
3600rpm |
| -
Shaft Sealing- |
G.Packing
or Mechanical Seal |
| -
Meterial - |
GC200, SC,
SSC13, SSC14, SSC16, ALLOY20, CD4MCU,
CAPENTER20CB3, DURMET, HASTELLOY |
| -
Standard Code - |
KS, ISO, JIS,
BS, DIN, ASTM |
|
|
|
|
